ASTM A234 Wpb Seamless Butt Weld Carbon Steel Pipe Fittings Welded Concentric Reducer
Product Description
Butt welded pipe fitting:(Carbon Steel / Stainelss Steel Butt weld pipe fittings,
Seamless / Seam Butt weld pipe fittings) are accessories of pipeline system, which connect the
pipes with the method of welding.
| Type: Butt welded 90 elbow (LR/SR), butt welded 45 elbow (LR/SR), butt welded 180 elbow (LR/SR), butt welded tee, butt welded reducing tee, butt welded cap, butt welded reducer (concentric/eccentric) |
Material: Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6,etc
Stainless steel(ASTM A403 WP304,304L,316,316L,321,etc
Alloy steel(ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,etc
Inconel: ASTM B564 UNS N06625, N06600, N08800,N08825,etc. |
| Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2313 |
Wall Thickness: SCH20, SCH40, SCH80, SCH120, SCH160, STD, XS, XXS.
JIS2311 AND 2312 SGP, LG, STD, XS.
DIN2605, 2615, 2616, 2617. |
| Size Range: 1/2" to 48 " |
Surface Treatment: Black paint, antirust oil
Connection:Welding |
| Packaging: Wooden Cases or wooden pallet or As per customer requirement |
| Delivery Time: 25 days after order conformed |
| Payment: By T/T or L/C |
Applications range: 1)Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
2) Industrial pipeline system on shipping, mine, oil field, textile, powder plant etc
3) Pipeline system on subway station, railway station, airport, seaport, bridge etc |
Reducer is a kind of pipe fitting used for pipe diameter. The commonly used forming process is reducing, expanding or reducing plus expanding, and stamping can also be used for reducing pipes of certain specifications.
A. Reducing/expanding forming
The reducing forming process of the reducer is to put the tube blank with the same diameter as the big end of the reducer into the forming die. By pressing along the axial direction of the tube blank, the metal moves along the die cavity and shrinks to form. According to the size of reducer, it can be divided into one press forming or multiple press forming.
B. Stamping forming
In addition to using steel pipes as raw materials to produce reducers, the reducers of some specifications can also be produced by using the steel plate stamping process. The shape of the die used for drawing is designed according to the size of the inner surface of the reducer, and the blanking steel plate is punched and stretched with the die.
Before bonding the reducer, the socket side and the outside of the socket shall be wiped with a dry cloth. When there is oil stain on the surface, it must be wiped. The following points should be noted:
1. Control caliber: DIN standard (DN10-DN150), 3A/IDF standard (1/2 "- 6"), ISO standard( Ф 12.7- Ф 152.4);
2. International industrial standards: DIN, ISO, SMS, 3A, IDF, etc;
3. Product material: stainless steel 304, 316, 316L;
4. Quality and application: The reducer is treated with high-grade polishing equipment inside and outside to meet the surface precision requirements; This product is suitable for dairy, food, beer, beverage, pharmacy, cosmetics and other industrial fields;
5. External processing: non-standard products can be processed with drawings and samples according to user requirements;
6. Connection mode: clamp (quick installation) type, welding type, thread (union) type.
Note that the reducer is also suitable for pipe diameter reduction in the environmental protection and dust removal industry, which is generally made of rolled steel plates, cut and welded, with different pipe diameters and materials
Generally, they are hot-rolled coils, which are applied very well and can save costs.

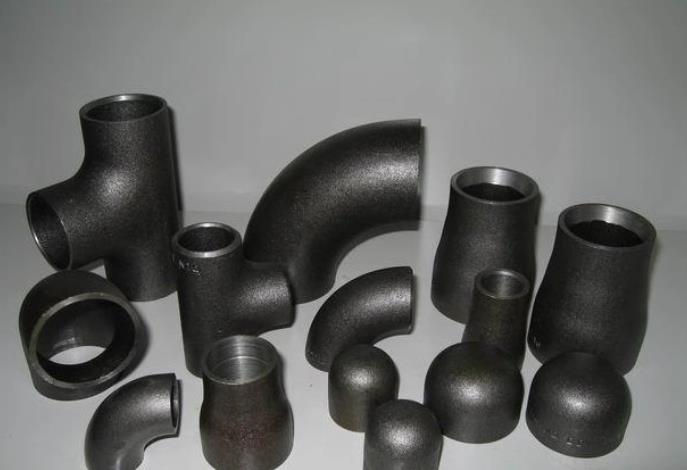

Product Display
