Transparent Paint 1" SS316 Socket Weld Pipe Flanges

Product Categories
Hebei Shengtian Pipe Fittings Group Co., Ltd.
Contact Now

Transparent Paint 1" SS316 Socket Weld Pipe Flanges

  • 1
  • 2

Brand Name : Shengtian

Model Number : Flange004

Certification : ISO9000

Place of Origin : China

MOQ : 1pieces

Price : 1-50 US $7.4/ Piece;>50 US $6.2/ Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pieces/month

Delivery Time : 7-15 work days

Packaging Details : Shrink Wrap-Carton Case-Exporting Plywood Case

Port : Tianjin

Producing Process : Billet-Cutting-Forging-Heating-Lathe-Drilling-Insp

Shipping : By sea,by air,by express

Surface : RF/FF

Structure : Flanges

Contact Now

1" SS316 304 150# B16.5 RF Forged Socket Weld Pipe Flange Oil&Gas

　　Socket weld flange simplified as SW flange, it has a recessed area (like a shoulder) in the flange bore, this shoulder serves as a guide to set the depth of the pipe that inserted to the flange. Socket welding flange initially designed for high pressure small diameters piping system.

Specifications Of 1" SS316 304 150# B16.5 RF Forged Socket Weld Pipe Flange Oil&Gas

ASME B16.5 　　Socket Weld Pipe Flanges Size

1/2″ to 48″

DN10~DN5000

ASME B16.5 　　Socket Weld Pipe Flanges Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1,

API7S-15, API7S-43, API605, EN1092

ASME B16.5 　　Socket Weld Pipe Flanges Pressure

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

Test Certificates

EN 10204/3.1B

Raw Materials Certificate

100% Radiography Test Report

Third Party Inspection Report, etc
ASME B16.5

Socket Weld Pipe Flanges

Coating

Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
ASME B16.5

Socket Weld Pipe Flanges

Production technique

Forged, Heat treated and machined
Packing

Plywood Cases, Pallets, Nylon Bags or According to

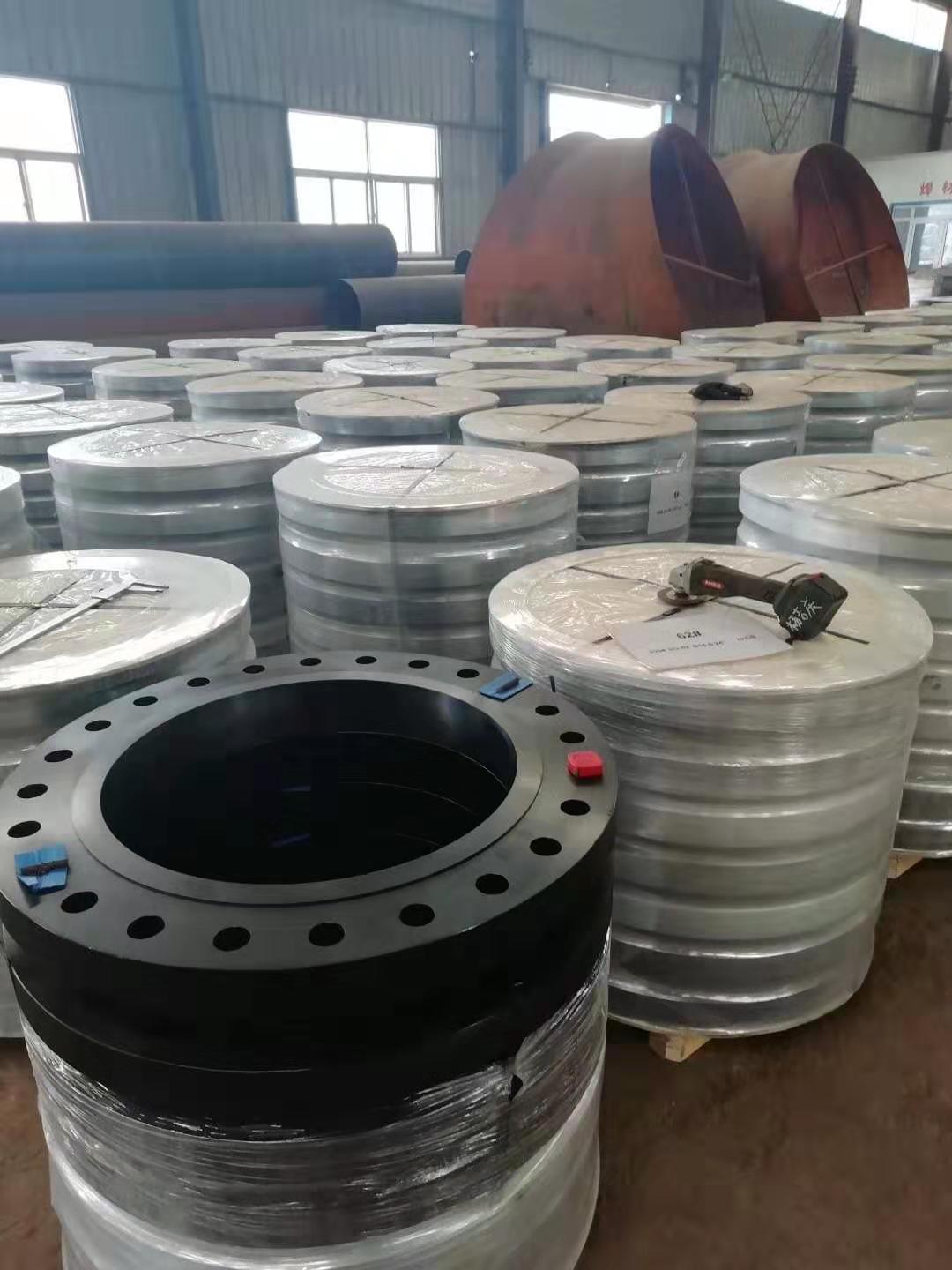

Socket Weld Pipe Flange Picture


Transparent Paint 1" SS316 Socket Weld Pipe Flanges

Transparent Paint 1" SS316 Socket Weld Pipe Flanges

Weight Of Socket Weld Pipe Flange

NPS DN FLANGE OD FLANGE THICKNESS D SLIP ON FLANGE WEIGHT (KGS) WELD NECK FLANGE WEIGHT (KGS) BLIND FLANGE WEIGHT (KGS)
(Inches) (mm) A MM MM
1/2 15 88.9 11.2 0.4 0.5 0.4
3/4 20 98.6 12.7 0.6 0.7 0.6
1 25 108 14.2 0.8 1 0.9
1 1/ 4 32 117.3 15.7 1 1.3 1.2
1 1/ 2 40 127 17.5 1.3 1.7 1.5
2 50 152.4 19.1 2.1 2.6 2.4
2 1/ 2 65 177.8 22.4 3.3 4.1 3.9
3 80 190.5 23.9 3.9 4.9 4.9
3 1/ 2 90 215.9 23.9 4.8 6.1 6.2
4 100 228.6 23.9 5.3 6.8 7
5 125 254 23.9 6.1 8.6 8.6
6 150 279.4 25.4 7.5 10.6 11.3
8 200 342.9 28.4 12.1 17.6 19.6
10 250 406.4 30.2 16.5 24 28.6
12 300 482.6 31.8 26.2 36.5 43.2
14 350 533.4 35.1 34.6 48.4 58.1
16 400 596.9 36.6 44.8 60.6 76.1
18 450 635 39.6 48.9 68.3 93.7
20 500 698.5 42.9 61.9 84.5 122
24 600 812.8 47.8 86.9 115 185

　　Hebei shengtian pipe-fitting group Co., ltd is specialized in manufacturing and exporting a variety of stainless steel,carbon steel pipe fittings such as elbows, tees, reducers ,forged flanges etc. We are standard and non-standard flange mamufacure.All kind of pipe fittings, flanges are according to the international standard to produce.Each product,the quality meet the international standard inspection technical standard.
